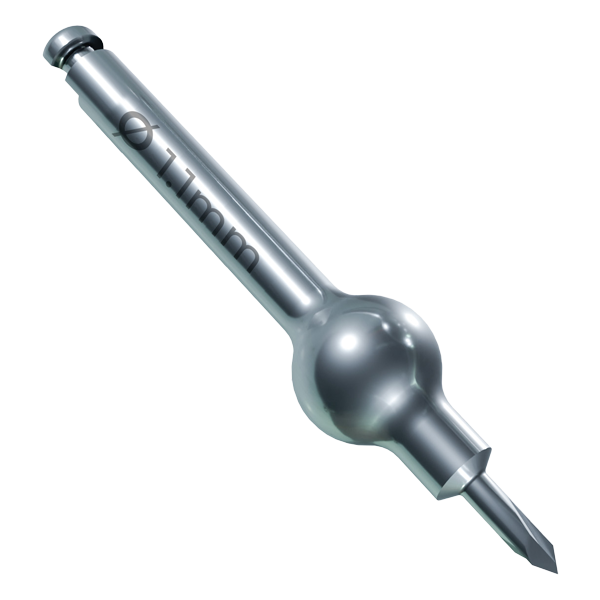

The Morelli Drill Bit For TADs Short is an auxiliary rotary instrument used to pre-drill the site before an orthodontic mini screw is installed. With a Ć1.1 mm cutting diameter and a short 27 mm overall length, it is intended for cases where pre-drilling is indicated to ease access to the installation site and reduce the insertion torque required to seat the screw.
Key Features
Ć1.1 mm cutting diameter ā Prepares a pilot hole sized for orthodontic mini screw installation.
27 mm total length ā Short overall length for insertion sites where a longer instrument is difficult to align.
Reduced insertion torque ā Pre-drilling lowers the torque needed to drive the mini screw into position.
Improved site access ā Facilitates reaching the planned installation site during the procedure.
Auxiliary to installation ā Indicated as an auxiliary step supporting a safe and predictable mini screw installation.
Dense bone support ā Particularly useful in situations of dense bone or difficult access.
Technical Specifications
Material: Stainless steel.
Cutting Diameter: Ć1.1 mm.

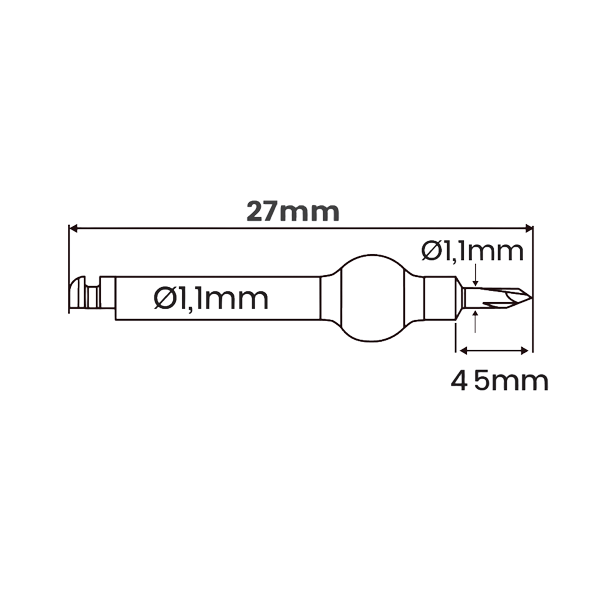

Overall Length: 27 mm (short).
Quantity: 1 unit.
Purpose: Pre-drilling the installation site prior to orthodontic mini screw placement.
Certifications: FDA Approved, CE Approved, ISO 9001:2015, ISO 13485:2016.
Country of Manufacture: Brazil.

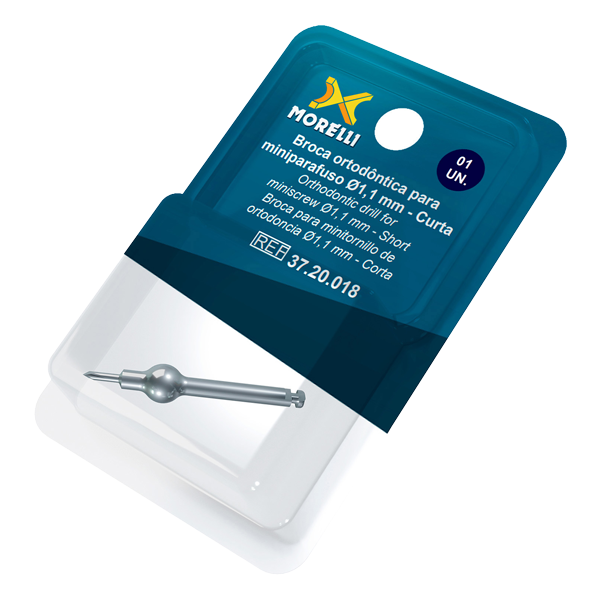

Package Includes: Morelli Drill Bit For TADs Short (1 unit).
Clinical Applications
Mini screw pre-drilling. Preparing the site before installing an orthodontic mini screw, as an auxiliary step to the procedure.
Dense bone regions. Sites where bone density would otherwise raise the torque needed to seat the screw.
Restricted access. Areas of difficult access where the shorter 27 mm length is easier to position.
Pre-drilling before mini screw installation in a tight site?
The short 27 mm length keeps the instrument easier to align and control where access is restricted.
