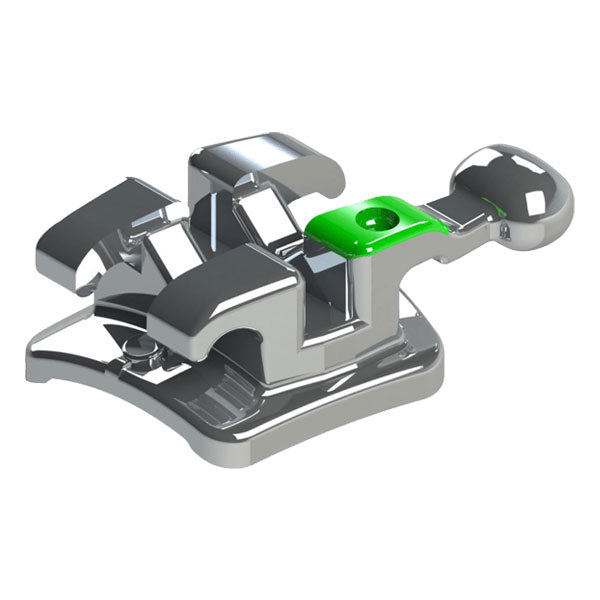

The Morelli Max Stainless Steel .022″ Roth Brackets — 100 Patient Kits is a 2,000-bracket pack covering one hundred full cases of fixed orthodontic treatment in the Roth prescription. Brackets from the Max line are injected as a single body by MIM (Metal Injection Molding), with no welds and the strength of stainless steel, combining a sandblasted base with retentive micro-pins for high-performance bonding.
Key Features
Single-body MIM construction — injected in one piece by Metal Injection Molding, with no welded parts to fatigue or detach
Sandblasted base — delivers a 35% increase in retention compared with a plain base
Retentive micro-pins — 16% more efficient in bonding, reinforcing the adhesive interlock
Cervico-occlusal and mesiodistal curvature — the base contour follows the enamel surface for maximum adaptation and anchorage
Opening at the edge — lets excess resin escape and facilitates photopolymerization during bonding
Roth prescription with integrated hooks — hooks on canines and premolars for elastic and auxiliary mechanics
Stainless steel strength — corrosion resistance and dimensional stability throughout treatment
Technical Specifications
Material: Stainless Steel
Manufacturing Process: MIM (Metal Injection Molding), single body, weld-free
Prescription: Roth
Slot: .022″ × .028″ (0,56 × 0,71 mm)
Hooks: Canines and premolars
Arch Coverage: Upper and lower, teeth 15–25 and 35–45
Quantity: 100 patient kits — 2,000 brackets
Purpose: Fixed orthodontic treatment with Roth prescription brackets, packaged for high-volume clinical demand
Certifications: FDA Approved, CE Approved, ISO 9001:2015, ISO 13485:2016
Country of Manufacture: Brazil
Package Includes: 100 patient kits with 20 Max Roth brackets each (2,000 total), slot .022″, with hooks on canines and premolars
Torque and Angulation
Upper central incisor (11/21): torque +12° · angulation +5° · length 3,2 mm
Upper lateral incisor (12/22): torque +8° · angulation +9° · length 2,5 mm
Upper canine (13/23): torque -2° · angulation +13° · length 2,9 mm
Upper first premolar (14/24): torque -7° · angulation 0° · length 2,9 mm
Upper second premolar (15/25): torque -7° · angulation 0° · length 2,9 mm
Lower central incisor (31/41): torque 0° · angulation 0° · length 2,3 mm
Lower lateral incisor (32/42): torque 0° · angulation 0° · length 2,3 mm
Lower canine (33/43): torque -11° · angulation +7° · length 2,9 mm
Lower first premolar (34/44): torque -17° · angulation 0° · length 2,9 mm
Lower second premolar (35/45): torque -22° · angulation 0° · length 2,9 mm
Clinical Applications
Fixed orthodontic treatment with the Roth prescription, from initial alignment through finishing
Correction of crowding, rotations and malocclusion using full-arch bracket mechanics
High-volume clinical operations where multiple operators bond the same prescription daily
Running a high-volume orthodontic clinic?
The 100 Patient Kits pack consolidates one hundred cases into a single stocked item at the lowest cost per kit, so purchasing and bonding stay standardized across every operator.
