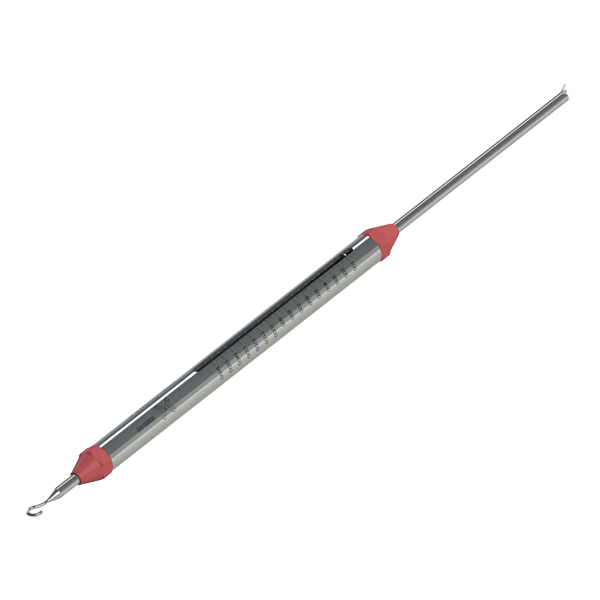

The Morelli Force Gauge Dynamometer — 100 to 1600 gf (cN) is a mechanical tensiometer that reads traction from 100 to 1600 gf (cN) on a single direct-reading scale. It is the instrument to reach for when the force being verified is generated by extraoral traction or by full-strength interarch elastics. It is built with a stainless steel body and polymer tips and carries a red scale for immediate identification on the tray.
Key Features
100 to 1600 gf (cN) measuring range — a single scale covering moderate through heavy orthodontic loads.

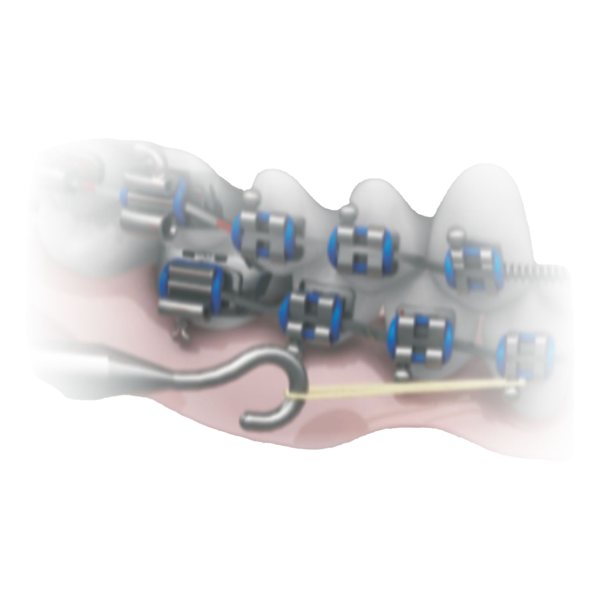

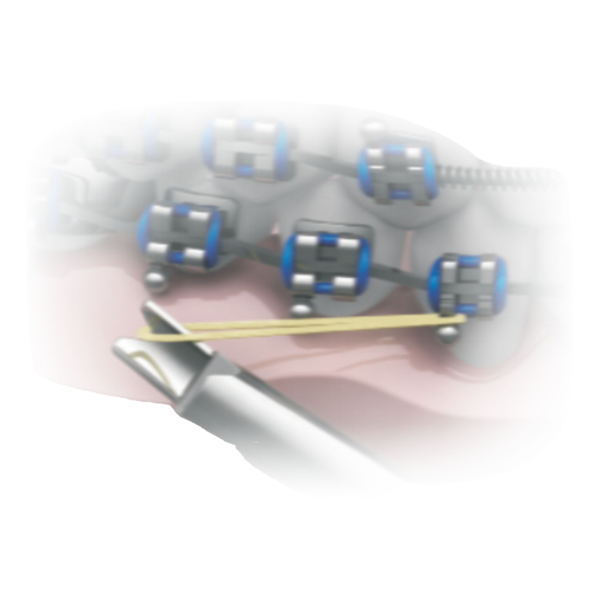

Two tips for easy positioning allow the gauge to be hooked and read from either side of the arch, so extraoral and intraoral attachments can be reached without repositioning the patient.
Purely mechanical operation requires no batteries, calibration cycle or electronics — the reading is taken directly from the scale at chairside.
Red scale color marks this instrument as the heavy-force gauge for quick identification on the tray.
Corrosion-resistant construction in stainless steel with polymer tips, for routine reprocessing between patients.
Technical Specifications
Material: Stainless steel body with polymer tips
Measuring Range: 100 to 1600 gf (cN)
Type: Mechanical (direct-reading scale, no power source)
Tip Configuration: Two tips for easy positioning
Scale Color: Red
Sterilization: Autoclavable at 121 °C (250 °F)
Purpose: Measurement of the force applied by intraoral and extraoral orthodontic elastics in the heavy-force range
Certifications: FDA Approved, CE Approved, ISO 9001:2015, ISO 13485:2016
Country of Manufacture: Brazil
Package Includes: One Force Gauge Dynamometer, 100 to 1600 gf (cN) range, red scale
Clinical Applications
Extraoral traction checks — verifying the traction delivered by a facebow or headgear assembly before it is handed to the patient, a load that sits in the upper portion of this scale.
Full-strength interarch elastics — confirming the force of Class II and Class III elastics prescribed at full strength.
Heavy-force appliance verification — documenting the actual force delivered by heavy elastics and traction assemblies at each recall, so prescription and delivery can be compared.
Are your heaviest mechanics delivering the prescribed force?
This instrument reads from 100 to 1600 gf (cN), the span occupied by extraoral traction and full-strength interarch elastics: engage either tip, pull to the working position and read the value directly from the red scale at chairside.
